Apple May Adopt 1704 x 960 Resolution Display for Upcoming iPhone 6

It’s been a year since I started speculating that the iPhone 6 would have an @3x display, and so far a common reaction is always “But Steve Jobs said pixel-doubling was necessary when introducing the iPhone 4!”.

It’s important to understand why @2x made sense to also understand why @3x does:

1) It was an integer scaling multiplier.

Xcode/Cocoa use a “points” system for every possible coordinate/dimension. Those don’t represent pixel values unless you’re using a non-Retina display (@1x). For everything else, the pixel dimensions of elements are found using points * scaling multiplier. For example, an iPhone 5 is seen as being 568x320 points * @2x = 1136x640 pixels.

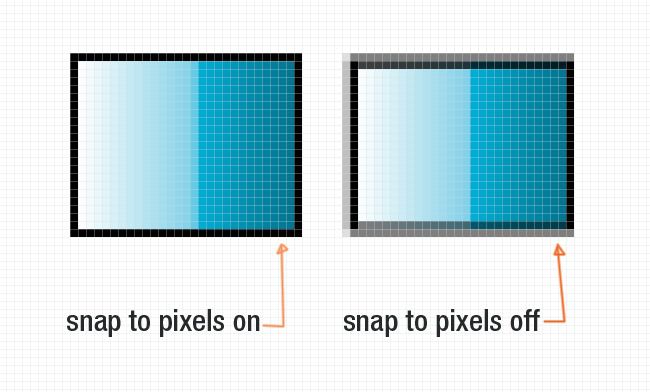

If you had a floating point scaling multiplier, say @2.5x, you’d end up with floating point pixel dimensions as well. For example, a 85x45 points UI element * @2.5x = 212.5 x 112.5 pixels. Oops, fractions of pixels! Since the screen can’t render those directly, multisampling will be applied to “blend” fractions of pixels (think of anti-aliasing). What it would look like is this (on the right):



You don’t want this blurry mess. Therefore, you don’t want your UI elements to end up with non-integer pixel dimensions. That’s why you want an integer scaling multiplier. In 2010 with the iPhone 4, @2x was chosen in large part because it was the next integer after 1, not because it’s the double. That means @3x would be an equally good scaling multiplier as far as keeping integer pixel dimensions goes.

2) It didn’t require scaling interpolation on older displays

Steve Jobs explained that one pretty clearly at WWDC.



One pixel would become a 2x2 pixel grid. No fancy math had to be done to “scale” older apps on the iPhone 4. But why does this matter? Because scaling interpolations often reduce quality (not for performance reasons, that’s insignificant). Keep in mind however that unlike with the @1x -> @2x transition we had in 2010, this time we’d only have a 50% enlargement rather than 100%.

The thing is, a 50% enlargement with interpolation doesn’t look worse than a 100% enlargement with pixel-doubling, despite the loss of details due to the interpolation.

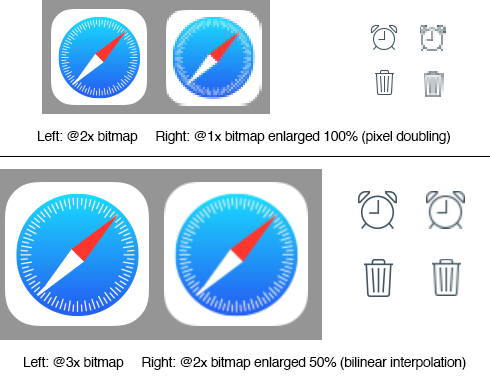

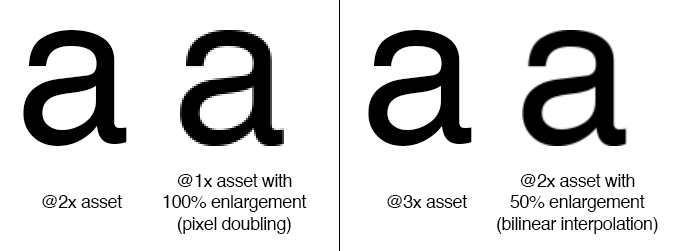

See those examples I made with bilinear interpolation (iOS’ default interpolation when scaling images):



As you can see, older non-@3x-optimized apps would actually look better on an @3x iPhone than non-@2x-opitmized apps did on an @2x iPhone. Add to this the fact that the screen's pixel density would be higher this time around, and the perceived image quality difference would be even smaller.

Another common comment has been "But shouldn't developers be using AutoLayout constraints, which make apps pretty much resolution-independent? Therefore, who cares about the exact resolution?"

Yes, they should. But the reality is that most apps (even those using AutoLayout) wouldn't magically scale well to a bigger display like it was a responsive website. They would require significant tweaking before they could do that, and I can't see Apple forcing AutoLayout everywhere just yet. That would essentially force developers to redesign/test their app in around a month, unless which their app would probably look like crap on the iPhone 6. Since that's kind of an unrealistic timeframe, it's the consumers that would end up paying in the end. I think Apple will go through a smoother transition than that.

With the recent introduction of Asset Catalogs (https://developer.apple.com/library/ios/recipes/xcode_help-image_catalog-1.0/Recipe.html) in Xcode, I think it's pretty clear that Apple wants to introduce a new resolution. The fact images are still labeled by "@1x" and "@2x" also leads me to believe they're not ready to drop the points system just yet.

No 1080p at least? Come on Apple get it together!

Just look at how much space is wasted in the iPad and you'll have the answer.

Ios on ipad is just pathetic waste of screen space it's purely blown up iPhone os. Terrible.

I won't be happy until I have 1000ppi. Anything less than 1000 won't impress me at all. I want *really* crisp.

Who cares what the resolution is?

All I want to know is how iOS is going to scale up. I don't want a pathetic new row of icons again.
